Many photovoltaic (PV) systems suffer from unstable output, frequent faults, or even complete shutdowns—not because of solar panels or inverters, but due to an overlooked component: the solar combiner box.

In this ultimate solar combiner box buying guide, we’ll walk you through everything you need to know—from working principles and safety protection to inverter matching and real-world selection tips. Whether you’re a system designer or EPC contractor, this guide will help you make smarter, safer, and more cost-effective PV decisions.

Definition and Basic Principles of Solar Combiner Boxes

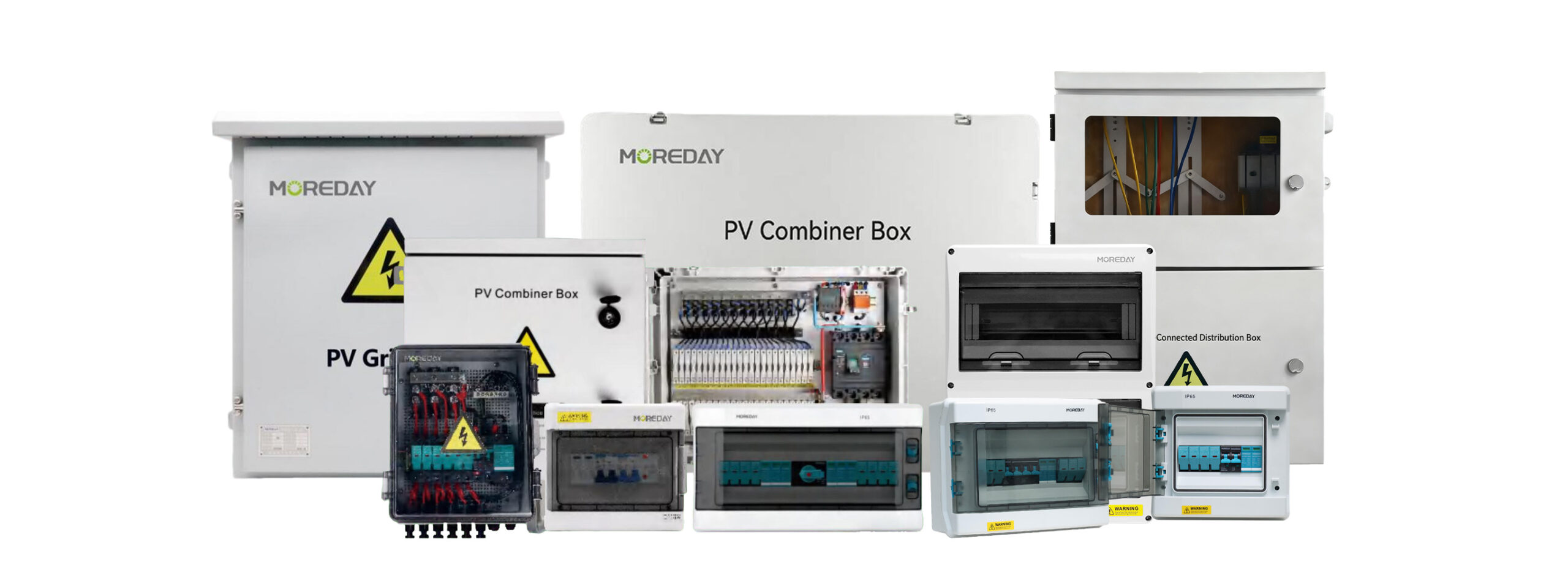

A solar combiner box, also known as a photovoltaic combiner box or dc combiner box, is a device that combines the DC output current from multiple photovoltaic modules connected in series to form a branch (or “loop”), and then outputs it to an inverter. Its core functions are:

To combine multiple DC current streams for unified output;
To provide protection against overcurrent, overvoltage, reverse connection, and lightning strikes;
To achieve system monitoring and safety management.

In a typical rooftop PV setup, multiple strings are combined into one output to simplify wiring and improve safety.

What Is a Solar Combiner Box and How It Works

A high-quality photovoltaic (PV) combiner box is more than just a “junction box”; its internal design directly determines the system’s lifespan and safety. Typically, it consists of the following key modules:

Component	Function	Notes
Content	Content	Content
DC Circuit Breaker	Disconnects each string for protection	1P–4P types, 600–1500V
Fuse	Prevents reverse current	One per polarity
SPD	Protects from lightning	Bipolar preferred
Busbar	Conducts current	Tinned copper
Enclosure	Protects internal parts	IP65–IP67
Monitoring Unit	Detects faults & sends data	RS485/Modbus optional

Common Combiner Box Specifications and Classifications

Combiner boxes can be further classified into various types based on factors such as the number of input circuits, system voltage level, protection characteristics, and whether monitoring is included.
In actual projects, engineers will select the appropriate specifications based on the component size and inverter input requirements. Here are some common classifications:

Classification Standards	Common Specifications
Number of Input Circuits	2-in-1-out, 2-in-2-out, 4-in-1-out, 6-in-1-out, 8-in-1-out, 12-in-1-out
Rated Voltage	600V / 1000V / 1500V
Monitoring Included	Standard Type / Intelligent Monitoring Type
Installation Environment	Outdoor / Indoor Outdoor
Housing Material	Stainless Steel / Engineering Plastic / Aluminum Alloy
Number of Outputs	1-out, 2-out

Engineers can quickly select solar combiner boxes with different voltages and materials.

The Role of Combiner Boxes in Photovoltaic Systems

In a typical photovoltaic (PV) power generation system, the combiner box is located between the module array and the inverter, serving as the hub of the entire DC side. Its function extends beyond simply “combining current”; it also includes protection and management. Specifically:

Centralized Input, Simplified Wiring: By integrating the outputs of multiple PV modules into a single main line through the combiner box, construction difficulty is greatly simplified.
Safety Protection: Internal fuses, surge protectors, circuit breakers, and other multi-layered protection systems ensure long-term stable operation of the system in harsh environments.
Convenient Operation and Maintenance: During maintenance, individual branch lines can be independently disconnected, facilitating fault location.
Intelligent Monitoring and Management: Real-time monitoring of the current and voltage status of each branch line helps in early detection of problems.

The Relationship Between Solar Combiner Boxes and Upstream/Downstream Equipment in a Photovoltaic System

Although a solar combiner box is merely an “intermediate node” in the entire photovoltaic power generation system, its selection must be based on the matching and coordination of upstream and downstream equipment.

An excellent combiner box design must not only meet the input requirements of the photovoltaic modules but also satisfy the electrical compatibility conditions of the inverter. In other words, the combiner box configuration acts as a bridge between the photovoltaic array and the inverter.

Upstream Equipment: Photovoltaic Module Array

Photovoltaic modules are the power source of the entire system, and the combiner box is used to centralize their output. The design of the module array directly determines the “input parameters” of the combiner box.

The Connection Method of the Photovoltaic Array Affects the Selection of the Combiner Box

When photovoltaic modules are connected in series, the system voltage increases while the current remains constant;
When modules are connected in parallel, the system current increases while the voltage remains constant.

Therefore, before determining the combiner box model, it is necessary to understand:

The operating voltage and maximum voltage (Voc) of each string of modules;
The maximum operating current (Isc) of each string of modules;
The number of parallel circuits (i.e., the number of input circuits).

Example: If your system consists of 8 strings of modules connected in parallel, each string drawing approximately 12A, and the system’s maximum voltage is 1000V, then you should choose a combiner box with 8 inputs and 1 output, a rated voltage of 1000VDC, and 15A fuse protection per channel.

Matching the Array Environment with the Combiner Box Protection Rating

Photovoltaic arrays are typically distributed in areas such as rooftops, mountains, grasslands, or deserts. These environments place different requirements on the combiner box enclosure:

Rooftop or commercial/industrial settings: IP65 protection rating recommended;
Outdoor or dusty environments: IP67 stainless steel enclosure recommended;
High-altitude or coastal areas: Models with surge protection modules (SPDs) should be selected to withstand strong power surges and salt spray corrosion.

Downstream Equipment: Photovoltaic Inverter

The inverter is the key device that converts the DC power output from the combiner box into AC power. Its input parameters directly limit the combiner box configuration.

Voltage and Current Matching

The rated voltage of the combiner box must match the DC input voltage level of the inverter:

For a 600V inverter, a 600VDC combiner box should be used;
For a 1000V inverter, a 1000VDC combiner box should be used;
For high-power centralized inverters or commercial and industrial energy storage systems, a 1500VDC combiner box can be selected.

Regarding current, the rated current at the inverter input should be greater than the combined current at the combiner box output, typically with a 10–20% margin to ensure safe operation.

Multi-Input and Multi-Output Compatibility

Some inverters support multiple DC inputs, therefore combiner boxes with 2-input 2-output or 4-input 2-output configurations can be used.

These designs not only balance multiple arrays but also allow another array to continue operating in the event of a failure in one inverter group, improving system stability.

Communication and Monitoring System

In smart photovoltaic systems, combiner boxes can also communicate with inverters via RS485 or CAN bus to achieve:

Real-time monitoring of current and voltage for each circuit;
Detection of fuse and SPD status;
Fault alarms and remote maintenance.

These functions significantly improve system operation and maintenance efficiency, especially suitable for large-scale commercial and industrial rooftop or ground-mounted power station projects.

System-Level Matching Case Studies

Case 1: Residential Rooftop System

Array: 8 photovoltaic modules, 10 modules per group in series
Inverter: 1000V 10kW single input
Recommended combiner box: 8 inputs, 1 output, 1000VDC, IP65 with surge protection

Case 2: Industrial and Commercial Distributed System

Array: 24 modules, installed in two zones
Inverter: Dual DC input
Recommended combiner box: 12 inputs, 2 outputs, 1000VDC with monitoring

Case 3: Large Ground-Mounted Power Station

Array: Multiple array areas, 12 series in parallel per array
Inverter: Centralized 1500V input
Recommended combiner box: 12 inputs, 1 output, 1500VDC, IP67 industrial-grade stainless steel casing

Key Selection Considerations and Technical Parameters for Solar Combiner Boxes

Selecting a suitable solar combiner box is far more complex than simply choosing the number of circuits. An excellent combiner box requires a comprehensive balance in electrical performance, safety protection, structural design, and system compatibility.
This section will use practical engineering experience to systematically explain the key parameters and selection logic that should be focused on during the actual procurement and design phases.

Rated Voltage

The rated voltage of a combiner box is one of its most critical parameters, determining the system compatibility and safety margin of the equipment.
Common rated voltages for combiner boxes are 600V, 1000V, and 1500V.

System Type	Recommended Combiner Box Voltage	Typical Applications
Residential Rooftop Solar PV	600V	Small-scale rooftop and carport systems
Commercial and Industrial Distributed PV	1000V	Factories, warehouses, and commercial buildings
Large Ground-mounted Power Stations	1500V	Centralized inverters and high-power module systems

Notes when selecting:

Combiner box rated voltage ≥ Maximum open-circuit voltage (Voc) of module array × 1.2;
Do not operate under overvoltage for extended periods, otherwise it will reduce device lifespan or even cause breakdown.

Rated Current

The rated current represents the maximum permissible current for each input and the total output.

The current for each input should be higher than the component short-circuit current (Isc) × 1.25;
The output current of the busbar should be the sum of the input currents, with a margin of at least 20%.

For example: If the short-circuit current of each component string is 12A, and the busbar has 8 inputs, the total current is approximately 96A. It is recommended to select an output rated current of 125A or higher.

Number of Input/Output Circuits

The most obvious difference between combiner boxes is the number of inputs and outputs.
This directly depends on the scale of your photovoltaic array and the inverter structure.

Model Structure	Typical Application Scenarios
2 Inputs 1 Output	Small residential systems (<5kW)
2 Inputs 2 Outputs	Distributed dual-inverter structure
4 Inputs 1 Output	Common configuration for small to medium-sized systems
6 Inputs 1 Output	Commercial and industrial rooftop, parking shed systems
8 Inputs 1 Output	Medium-sized ground-mounted systems
12 Inputs 1 Output	Large arrays, centralized inverter support

Some projects may require special structures, such as 1 input 2 outputs or 2 inputs 2 outputs, to be compatible with multiple inverters or achieve regional control. These types of combiner boxes have become standard products.

Protection Rating (IP Rating)

The protection rating (IP Rating) is an important indicator for evaluating whether a combiner box can operate stably for a long time in harsh environments.

Protection Rating	Dustproof	Waterproof
IP54	Dustproof and splashproof	Indoor installation
IP65	Dustproof and water jetproof	Common outdoor systems
IP67	Short-term immersion acceptable	High humidity, high salt spray, or outdoor environments

For systems exposed to the elements for extended periods outdoors, it is recommended to choose a combiner box with an IP65 rating or higher, and to use weather-resistant seals and a UV-resistant housing.

Main Protection and Safety Functions

A qualified solar combiner box should have the following protection functions:

DC Circuit Breaker (DC Isolator)
Used for manually disconnecting the circuit during maintenance or emergency situations;
Industrial-grade circuit breakers with an insulation class of 1500VDC or higher are recommended.
Fuse Protection
Each positive and negative terminal is equipped with a pair of fuses to effectively prevent backflow current.
Surge Protection (SPD)
Double-pole surge protection design (surge protection for both positive and negative terminals);
SPD operation status should be visible or remotely monitored.
Grounding and Reverse Connection Protection
Internal standard grounding copper busbar;
Prevents equipment damage caused by incorrect wiring.

How to Choose the Right Solar Combiner Box for Your Needs

After understanding the technical principles, the next key point is how to choose the appropriate combiner box configuration based on your actual project requirements. Many buyers are often overwhelmed by the various specifications, models, and brand parameters when first encountering this product. The following content will help you quickly determine which type of product is best for you.

The Role of Combiner Boxes in a Complete PV System

Combiner box acts as electrical bridge between modules and inverters
Provides safety protection
Enables smart monitoring

Choosing the Combiner Box Type Based on Application Scenarios

Small Residential Photovoltaic Systems (≤10kW)

Residential rooftop photovoltaic systems typically use 1–2 combiner boxes (such as 4 in 1 out or 6 in 1 out).

Key Considerations:

Rated Voltage: Generally 600V or 1000V DC;
Protection Rating: IP65 or IP66, rain and dust resistant;
Installation Method: Wall-mounted is the most common;
Recommended Configuration: Includes surge protection module, DC circuit breaker, and MC4 interface.

✅ Recommended: MOREDAY 6-in-1-out DC Combiner Box (IP65, CE certified).

Commercial and Industrial Rooftop Projects (10–100kW)

These systems often use a multi-input design, commonly 8–24 inputs.

Rated Voltage:1000V or 1500V is recommended;

Protection Requirements: IP66 metal enclosure recommended for outdoor use;
Surge Protection: At least Class II SPD;
Circuit Breaker Configuration: Fuse protection is recommended.

✅ Recommended: MOREDAY Commercial and Industrial 16-in-1-out PV Combiner Box, 1500V.

Large Ground-Mounted Power Stations (>100kW)

Centralized or string-type solutions, combiner boxes typically have 16–32 inputs and are equipped with high-breaking-capacity switches.

Rated Voltage: 1500V DC;

Installation Environment: Outdoor, direct sunlight, high temperature;
Recommended Material: Stainless steel housing, IP67 protection rating;
Additional Functions: Supports monitoring module (with current detection and temperature alarm).

✅ Recommended: MOREDAY High-Voltage Outdoor PV Combiner Box, 1500V, IP67.

Energy Storage Systems or Hybrid Microgrids

These systems often have higher requirements for safety and compatibility.

Voltage Range: 200–800V DC;
Protection Requirements: IP67 or higher;
Function Expansion: Can be equipped with built-in DC fuses and disconnect switches;

Recommended Brand: Choose a model compatible with energy storage system certifications (e.g., TUV/CE certification).

Determining Combiner Box Specifications Based on System Power

System Power	Recommended Input Channels	Recommended Voltage Rating	Typical Model
≤10kW	4–6 channels	600V	4 in 1 out / 6 in 1 out
10–50kW	8–12 channels	1000V	8 in 1 out / 12 in 1 out
50–100kW	16 channels	1000–1500V	16 in 1 out
>100kW	24–32 channels	1500V	24 in 1 out / Customized

Common Purchasing Misconceptions and Avoidance Tips

Focusing only on the number of input channels, ignoring the rated voltage.

Many buyers mistakenly believe that “the more input channels, the better.” In fact, you need to check if your inverter’s input voltage matches.

Ignoring protection rating.

Outdoor projects must choose an IP65 or higher protection rating, especially in rainy or high-temperature areas.

Ignoring lightning protection.

Combiner boxes without SPDs are prone to entire assembly burnout due to lightning strikes.

Mixed brand interfaces.

It is recommended to keep MC4 interfaces of the same brand to prevent poor contact or water ingress.

Low-priced models lack certifications.

Export or bidding projects must require CE/CB/TUV certification.

Market Comparison and MOREDAY Positioning

With the rapid expansion of the global photovoltaic market, solar combiner boxes, as a crucial link connecting module arrays and inverters, have formed a mature industry chain. From entry-level residential systems to large-scale ground-mounted power plants, there are numerous brands and models available, with significant differences in performance and price. Understanding brand characteristics and price ranges is the final crucial step to ensure successful procurement.

Overview of Global Mainstream Brand Classifications

International Mainstream Brands (High-End)

Representative Brands: Phoenix Contact, ABB, Weidmüller, Schneider Electric

Characteristics: Mature technology, high reliability, excellent protection performance;
Certifications: Fully compliant with TUV/CE/UL/IEC standards;
Price Range: Typically 2–4 times that of domestic brands;
Applicable Scenarios: Power plants and commercial/industrial projects with extremely high safety and lifespan requirements.

Domestic Mainstream Brands (Mid-to-High-End)

Representative Brands:

MOREDAY, Chint, Kehua, Growatt
Features: Stable performance, high cost-effectiveness;
Certifications: Mostly CE, CB, and TUV certifications;
Support Range: Available from 1-in-1-out to 24-in-1-out;
Price Range: Approximately 60-70% of international brands;
Applicable Scenarios: Export projects, EPC projects, distributed photovoltaic systems.

OEM/ODM Manufacturers (Economy Type)

Mostly small and medium-sized manufacturers, primarily OEM; Low cost, but certifications and stability need to be examined; Suitable for domestic small and medium-sized projects or short-term temporary systems.

Price Range Reference (Based on General Market Prices)

Combiner Box Type	Voltage Rating	Number of Inputs	Typical Price Range (USD)	Description
Residential (Plastic Box)	600–1000V	2–6 Inputs	$25–50	Lightweight, easy to install
Commercial/Industrial (Iron or Stainless Steel)	1000–1500V	8–16 Inputs	$60–150	Usually includes surge protection module
Power Station (Monitoring)	1500V	16–32 Inputs	$200–500	Monitors current, voltage, and temperature
Customized (Special Voltage/Interface)	By Requirements	Customized	$150–800+	Suitable for energy storage or special environments

⚙️ Prices will fluctuate depending on protection level (IP65/IP67), material (stainless steel/cold-rolled steel), and function (surge protection/circuit break protection).

MOREDAY's Market Positioning and Advantages

As one of the leading domestic photovoltaic electrical brands, MOREDAY has established a complete product system in the field of solar combiner boxes, covering the entire application range from residential distributed to large-scale centralized photovoltaic power plants.

Core Advantages:

Full Series Coverage: 2/4/6/8/12/16/24 inputs, with 1-in-2-out and 2-in-2-out models as standard;
High-Standard Certifications: CE, CB, TUV, ISO9001 full certifications;
Flexible Customization Services: Custom designs can be tailored to customer inverter specifications, current requirements, and protection level requirements;
Extensive Export Experience: Products are widely used in Europe, Southeast Asia, the Middle East, Latin America, and other regions;
Durable Structural Design: Utilizes stainless steel or UV-resistant weather-resistant plastic shells, with protection levels up to IP67.

MOREDAY Typical Model Reference:

MDB-CB6/1 (6 in 1 out): Standard residential type, 600–1000V;
MDB-CB12/1 (12 in 1 out): Commonly used in industrial and commercial projects;
MDB-CB16/1 (16 in 1 out): 1500V high-voltage systems;
MDB-CB2/2 (2 in 2 out): For special inverter structures or energy storage interfaces;
Custom Series: Supports communication monitoring modules and intelligent current sampling.

Brand and Selection Recommendations

Although the solar combiner box is only an intermediate link in the entire photovoltaic system, its role is extremely crucial.

String safety, power generation efficiency, and subsequent maintenance costs are all closely related to the quality of the combiner box.

A good combiner box should:

Have sufficient protection rating;
Match the system voltage and inverter interface;
Have stable lightning and circuit breaker protection;
Be certified by major international standards;
Have after-sales and technical support provided by a reliable manufacturer.

Conclusion

Choosing a good combiner box extends the lifespan of your photovoltaic system and ensures more stable returns.

Whether you are an EPC contractor, system integrator, or end-user,

spending a few minutes understanding the parameters, brands, and compatibility before making a selection can allow you to secure more than ten years of stable power generation benefits from a single purchase.

Ryan Huang

Hello everyone, I’m Ryan Huang, founder of Moreday, a company specializing in solar-powered ev charging solutions and pv power transmission and distribution. Over the past 17 years, we’ve helped nearly 6000 customers in 67 countries (including farms, residential, industrial, and commercial users) solve their renewable energy and green power needs. This article aims to share more knowledge about renewable energy and solar power, bringing sustainable electricity to every household.

Connect with MOREDAY online by following and subscribing to our Social Media channels:
Follow MOREDAY on YouTube: youtube.com/@MoredayNewEnergy
Follow MOREDAY on Facebook: facebook.com/MOREDAYSOLAR
Follow MOREDAY on Instagram: instagram.com/moredaysolar
Follow MOREDAY on Pinterest: pinterest.com/moredaynewenergy
Follow MOREDAY on Twitter: x.com/MoredayElectric
