120KW/180KW DC FAST CHARGING STATION

120kW-180kW 2 Guns MOREDAY EV DC Fast Charging Station

Features:

120kW/180kW
2 Guns ( CCS1, CCS2, Chademo Optional)
Ethernet, 4G, and Wi-Fi Connections Available
Open Charge Point Protocol (OCPP) 1.6 And ISO 15118 Compliant
IP54 Rated Enclosure
Designed For Easy Installation And Maintenance
Available With Different Power And Voltage Configurations For Global Markets
Cooperate With The World’s Top 500
2 years warranty
Suitable For 99% Of Electric Vehicles

120KW/180KW DC Fast Charging Station:
Powering the Future of EV

Imagine having a ‘gas station’, but for electric vehicles. Sounds cool, right? Well, that’s essentially what a DC Fast Charging Station is! These are high-powered charging points that use direct current (DC) to rapidly charge EV batteries.

The magic of DC Fast Charging Stations lies in their direct use of DC power to charge the EV battery, bypassing the onboard charger that usually converts AC power to DC. This makes charging faster, almost as fast as filling up a tank of gas!

The 120KW/180KW DC Fast Charging Station is designed to deliver high power directly to the batteries of electric vehicles. The station is capable of charging vehicles at a rate of 120KW or 180KW, 120KW DC Charging Station and 180KW DC Charging Station depending on the model and the power input. This high power output significantly reduces the time it takes to charge an electric vehicle, making it more convenient for users.

Clearly Display The Charging Process

The station is compatible with both CHAdeMO and CCS1 charging standards, ensuring a wide range of electric vehicles can benefit from its fast charging capabilities. The station also features a clear LCD display that provides users with real-time information about the charging process, including the state of charge (SOC) status.

Elegant Design Meets High Performance

The design of the 120KW/180KW DC Fast Charging Station is equally as important as its power. The station has a sophisticated appearance and utilises innovative all-aluminum Z-shaped shutter technology. This design gives cold light aid and sunshade protection in addition to enhancing the station’s aesthetic appeal.

The station offers a wide continuous charging power range of 250–1000V, dynamic power distribution between two ports, and low standby power usage. One of the most effective charging options on the market, the station has a charge effectiveness of up to 95%.

Safety and User Experience

User safety was taken into consideration when designing the 120KW/180KW DC Fast Charging Station. It has a number of safety features, including as overcurrent, overvoltage, and overheating prevention. Additionally, the station employs RFID technology for user verification to guarantee that only individuals with permission can use the charging facility.

The station’s software, which supports OCPP (Open Charge Point Protocol), further improves the user experience. This makes it possible for the station to be linked with different management systems, giving users a smooth and practical charging experience.

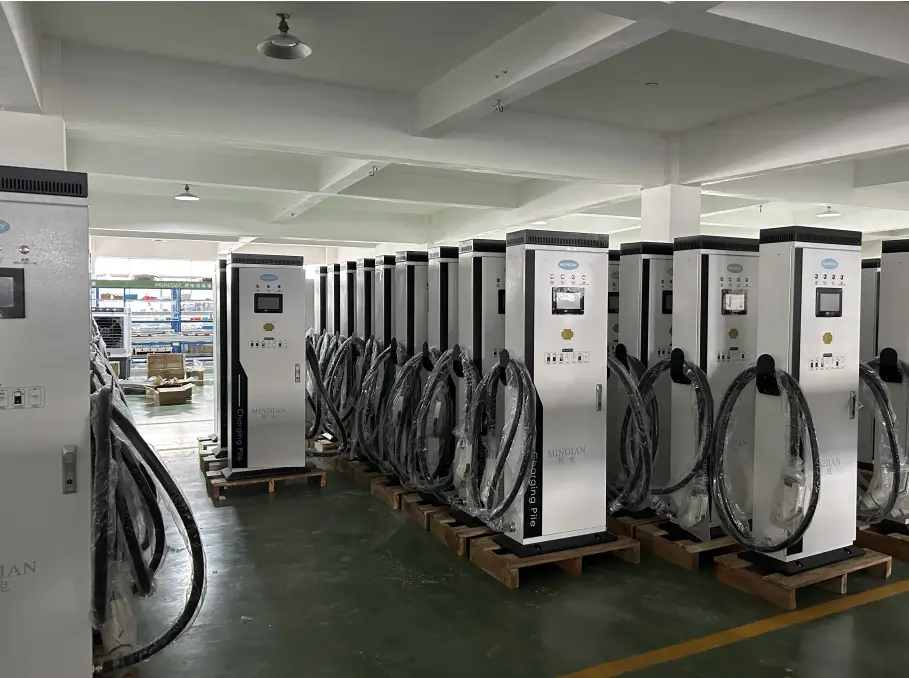

Play Video about MOREDAY DC EV CHARGER production workshop

Compatible With 99% Electric Vehicles

SPECIFICATION

Specification	Parameter
Shell Material	Cold Rolled Steel Plate
Size	1700mm750mm550mm(WHD)
Cable length	5m
Charging Gun	Double (CCS1+CCS1/CCS2+CCS2/CCS1+CCS2)
User Interface & Control
Charging Control	Plug and Play, RFID Card ,APP
Environmental
Storage Temperature	-40 to 75°C ambient
Operating Temperature	-30 to 55°C ambient
Operating Humidity	Up to 95% non-condensing
Altitude	< 2000m
Protection
IP Code	IP54
Electrical Specification
AC Input Voltage	AC380V±15% ,3P+N+PE AC
Input Frequency	50Hz/60Hz
Rated Outpower	120kW / 180kW
Output Voltage Range	CCS1: 150 Vdc –1000 Vdc/CCS2: 150 Vdc –1000 Vdc
Output Current	CCS1:0~250A/CCS2:0~250A
Communiction
OCPP	OCPP 1.6
Network Interface	Ethernet/4G

RELATED PRODUCTS

Choose Your Most Suitable Product

Common Queries

Frequently Asked Questions

You'll find answers about our products. If your question is not answered below,
please feel free to contact us.

Q: How fast does a 120kw charger charge?

A: A 120KW charger can charge an electric vehicle significantly faster than standard chargers. The exact time depends on the vehicle’s battery capacity and current state of charge.

Q: Are 120KW/180KW DC Fast Charging Stations compatible with all electric vehicles?

A: While most EVs can be charged using these stations, it’s always best to check the compatibility with the vehicle’s manufacturer.

Q: What are the benefits of using a 60KW/80KW DC Charging Station?

A: Apart from faster charging times, these stations play a critical role in promoting the adoption of EVs and supporting green energy solutions.

Q: What is the maximum charging rate at a DC fast charger kW?

A: The maximum charging rate at a DC fast charger can vary. However, some of the most powerful DC fast chargers, like the 120KW/180KW DC Fast Charging Station, can deliver power at a rate of up to 180KW.

Q: Do 120KW/180KW DC Fast Charging Stations contribute to 'range anxiety'?

A: On the contrary, these stations help alleviate ‘range anxiety’ by offering faster charging times, allowing users to travel longer distances with fewer charging breaks.
