As electric vehicles become more popular around the world, DC EV Chargers are becoming increasingly common in public places like shopping malls and highways to meet market demand. So, what are the differences between AC and DC electric chargers?
Both types serve the same purpose — to supply electricity to your EV’s battery — but they work in very different ways. Knowing these differences helps you make smarter choices when installing, using, or planning EV charging infrastructure.
1. Understanding the Basics: AC vs DC Electricity
All electricity is either alternating current (AC) – where charges move in only one direction – or direct current (DC) – where charges change direction periodically.
- AC (Alternating Current): The electricity that comes from your home outlet or the power grid. It constantly changes direction back and forth.
- DC (Direct Current): The type of electricity that EV batteries and PV energy storage use — a constant, one-directional flow of electrons.
Because the grid provides AC power and EV batteries store DC power, there must always be a conversion process between the two. The key difference between AC and DC EV chargers is where this conversion happens.
2. Where the Conversion Happens
→ Conversion happens inside the car.
AC Chargers: When you plug your EV into an AC charger (often called a Level 1 or Level 2 charger), the charger supplies AC electricity to the car. Inside the EV, an onboard converter changes this AC power into DC so it can be stored in the battery.
→ Conversion happens inside the charger.

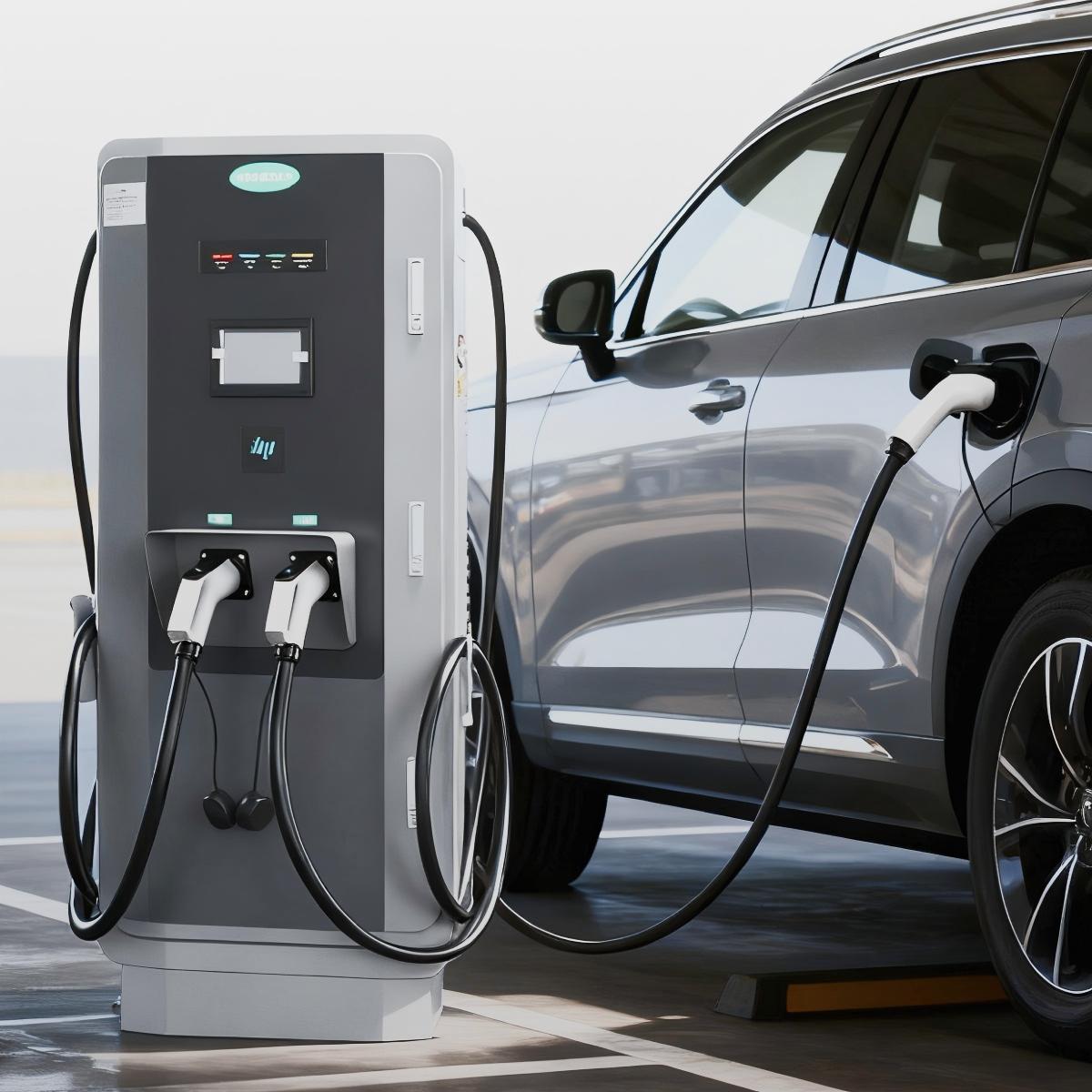

DC EV Chargers (DC Fast Chargers): These chargers perform the AC-to-DC conversion themselves, using powerful external rectifiers and converters. The DC electricity is then delivered straight into the battery.
This difference explains why DC charging is so much faster — the external charger has a much higher power capacity than the smaller onboard converter in most EVs.
3. Power Levels and Charging Speed
- Typical output: 3.5 kW – 22 kW
- Common use: Homes, workplaces, and parking lots
- Time to fully charge a typical EV: 4 – 10 hours
- Typical output: 50 kW – 350 kW (and higher in new ultra-fast systems)
- Common use: Public stations, highways, commercial fleets
- Time to reach 80% charge: 20 – 40 minutes (Some new ultra-fast charging systems can also compress this time to more than ten minutes or even a few minutes)
Because of this speed, DC fast chargers are ideal for long-distance travel, logistics hubs, and fleet depots where downtime needs to be minimal.
4. Key Differences Between AC and DC EV Chargers
| Feature | AC Chargers | DC EV Chargers |
|---|---|---|
Conversion Location |
Inside the EV |
Inside the charger |
Charging Speed |
Slow to moderate |
Fast to ultra-fast |
Power Output |
3–22 kW |
50–350 kW+ |
Installation Cost |
Low |
High |
Use Case |
Home, office |
Public, highway, fleet |
Connector Types |
Type 1 / Type 2 |
CCS / CHAdeMO / NACS |
Grid Demand |
Light |
Heavy |
Battery Management |
EV handles charging |
Charger handles charging |
5. When to Use Each Type
Use AC Chargers if you:
- Park your EV for long hours (home or office)
- Prefer lower installation costs
- Have access to a stable overnight charging schedule(Automatic charging during low electricity price periods)
Use DC EV Chargers if you:
- Need fast charging during trips or commercial operations
- Operate an EV fleet or charging business
- Want a quick boost instead of full charging cycles
We also recommend using an energy storage system to store electricity in energy storage batteries during periods of low electricity prices. This will also allow electric vehicles to maintain stable power during fast charging and reduce the burden on the grid.
In many cases, both systems complement each other: AC chargers handle everyday needs, while DC fast chargers ensure flexibility for travel and high-demand situations.
In China, some brands are using direct battery replacement to improve travel efficiency (we will explain this solution in detail in the next blog).

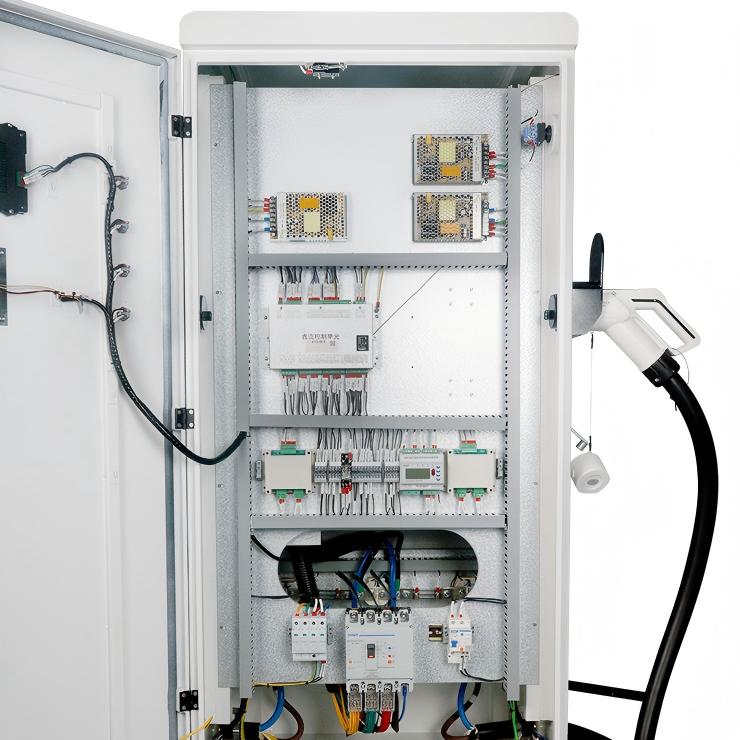

6. Technical Aspects of DC EV Chargers
DC EV chargers are more complex pieces of equipment. They include:
- Rectifiers and Power Modules — convert high-voltage AC to DC efficiently.
- Cooling Systems — manage heat during high-power operation.
- Communication Interfaces (OCPP, ISO 15118) — enable smart charging, monitoring, and billing.
- Connectors and Standards — CCS (Europe/US), CHAdeMO (Asia), NACS (North America).
Public fast-charging infrastructure is becoming a key part of national energy transition strategies.
Modern DC fast chargers can dynamically adjust charging power based on the EV’s battery condition and grid capacity, ensuring safe and efficient charging cycles.
7. Cost and Energy Considerations
Because DC chargers require more hardware, power infrastructure, cooling systems, and space, they are more expensive to install — sometimes costing 10–15 times more than an AC unit and battery life.
However, as the industry matures and the cost of semiconductor devices (Sic, Gan) decreases, prices will gradually decrease.
However, they can serve multiple vehicles per day and reduce waiting time dramatically, which makes them cost-effective for commercial operations, fleet charging, or highway rest stops.
Many fleet operators and parking facilities now prefer DC chargers to attract EV drivers who value time efficiency (commercial operations, fleet charging, or highway rest stops).
Users typically pay a higher rate per kWh for DC fast charging due to the higher infrastructure and electricity demand costs.
8. The Future of DC EV Chargers
The future of EV charging is leaning toward faster, smarter, and greener solutions:
- Ultra-fast DC chargers (600 kW–1 MW and more) for heavy trucks and buses.
- Integration with solar and energy storage systems, allowing renewable-powered charging stations.
- Bidirectional charging (V2G/V2X) where DC chargers can send power back to the grid or buildings.
- Smart load management to stabilize the grid and reduce peak demand.
At MOREDAY, we design and manufacture advanced DC fast chargers that align with these trends — combining high efficiency, intelligent control, and compatibility with renewable energy systems. Our solutions help businesses, EV operators, and public charging networks accelerate the transition to clean mobility.
9. Conclusion
Understanding the difference between AC and DC EV chargers is key to choosing the right charging solution for your needs.
- AC chargers are perfect for regular, overnight, or workplace charging.
- DC EV chargers provide fast, high-power charging ideal for commercial and highway applications.
As EV adoption grows, both charging types will continue to complement each other — creating a complete, reliable, and efficient charging ecosystem for the future of mobility.
In the next five years, the gap between AC and DC chargers will further blur as technology advances — we may see hybrid systems combining both benefits.
FAQ
A DC EV charger is a fast-charging station that converts AC power from the grid into DC power before delivering it directly to your EV’s battery, significantly reducing charging time.
Most modern EVs support DC fast charging, but compatibility depends on the vehicle model and connector type (CCS, CHAdeMO, or NACS).
Not if used correctly. While frequent fast charging can generate more heat, modern battery management systems and smart DC chargers regulate temperature and voltage to protect the battery.
DC chargers use advanced components, higher grid connections, and cooling systems, which increase both installation and operational costs.
Yes — AC chargers are cost-effective for regular overnight charging and help maintain battery health with slower, controlled charging cycles.
