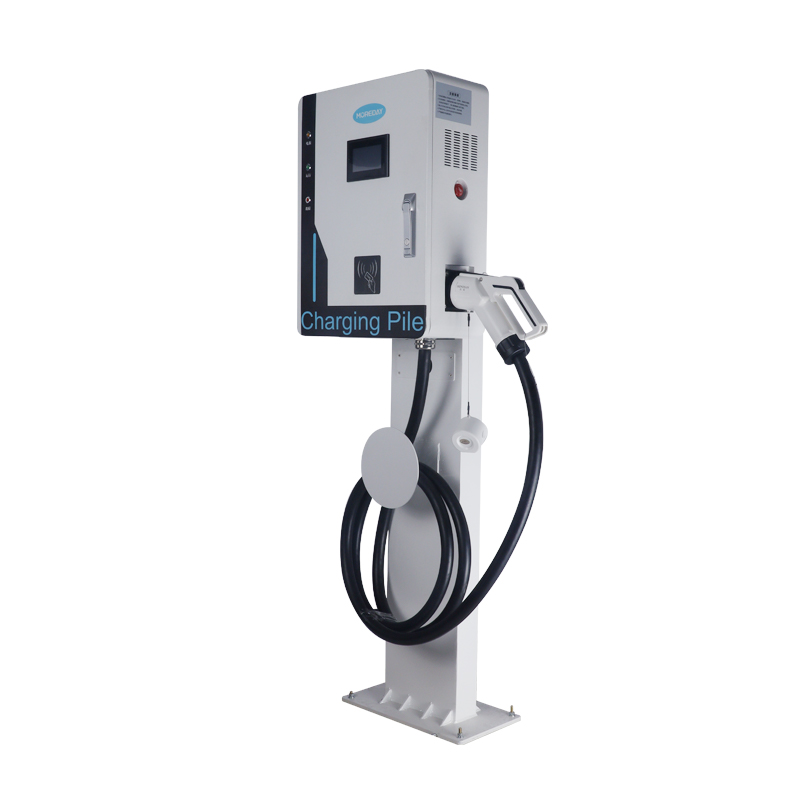

DC Pedestal Charging Solutions for Enterprises
The MDDC1 is a cutting-edge Level 2 electric vehicle charging solution designed specifically for light commercial vehicles. This compact DC fast charger offers exceptional versatility, is available in a single-outlet version, and delivers up to 20kW of power to meet the charging needs of a wide range of electric vehicles.
- Max power of 20 kW with two sockets
- Suitable for business applications
- Waterproof and dust protection
- Ethernet, 4G, and Wi-Fi communication
Certification:
Technical Documentation - MDDC1
| Product Specifications | Contents of Technical Instructions |
|---|---|
|
Rated Power |
20kW |
|
Output Maximum Current |
50A |
|
Constant Power Output Voltage Range |
DC400-750V |
|
Dimensions(W * H * D) Without Uprights |
600*450*210mm |
|
Start Method |
Plug and Charge |
|
Charging Mode |
Automatic Charging, by time, by power, by amount, etc. |
|
Display Method |
7 – inch Touch Display |
|
Network Background |
Support State Grid, Cloud Quick Charge, Xiaoju, Weijiangyun and Other Cloud Platforms |
|
Host Computer Communication |
Ethernet(Standard)/4G(Speed-Dating) |
|
Protective Function |
Short Circuit, Over Temperature, Over Current, Leakage, Input Over and Under Voltage, etc. |
|
Charging Method |
Full Power Charger |
|
Input Voltage |
AC380V±20% |
|
Input Frequency |
50Hz±10%Hz |
|
Number of Guns |
Single Gun |
|
Gun Line Lenght |
Standard 5 Meters (Optional) |
|
Ouput Voltage Range |
DC150-750V Adjustable |
|
Output Voltage Error |
≤±0.5% |
|
Output Current Error |
≤±1% |
|
Voltage Regulation Accuracy |
≤±0.5% |
|
Steady Flow Accuract |
≤±1% |
|
Harmonic Content |
≤±5% |
|
Power Factor |
≥0.99 |
|
Efficiency |
≥95% |
|
Electric Energy Metering |
Grade 1.0 Meets GB Standard |
|
Insulation Resistance |
≥20MΩ |
|
Noise |
≤60dB |
|
Protection Class |
IP54 |
|
Use Environment |
Outdoor of Indoor |
|
Cooling Method |
Air Cooling |
|
Operating Temperature |
-20℃~+50℃ |
|
Storage Temperature |
-40℃~+70℃ |
|
Relative Humidity |
5%~95% |
|
Altitude |
≤2000m |
|
Installation Method |
Wall Mount/Vertical Mount |
